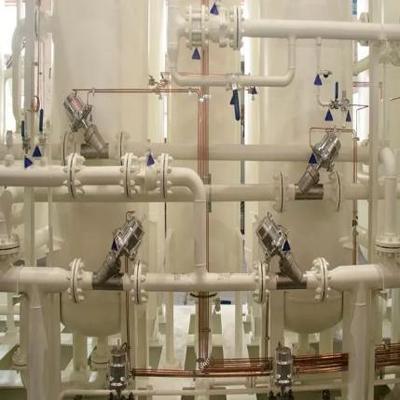

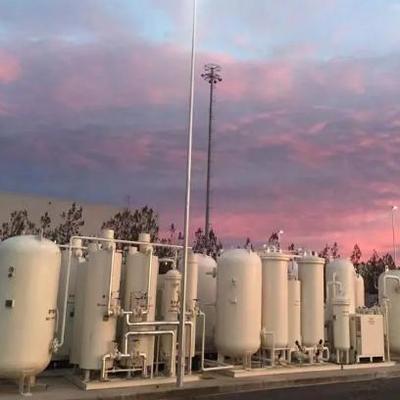

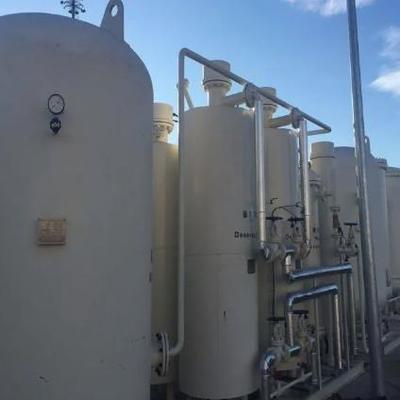

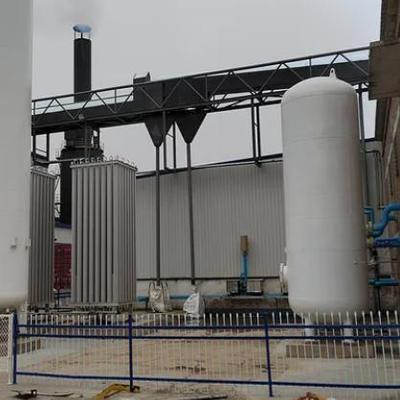

Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use

Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use
Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use

Image Grand :  Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: GNEE
Certification: SGS
Conditions de paiement et expédition:
Quantité de commande min: ≥ 1 sept
Détails d'emballage: emballage en bois
Délai de livraison: Temps de transit: EST. 17-24 jours
Conditions de paiement: Moneygram, Western Union, D / P, D / A, L / C, T / T
Contact

Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use

description de
Couler: 1200m3 / h Matériau intérieur: Acier inoxydable
Pression: 1 à 10 bar Pression d'essai: 0,8MPA-1.6MPA
Garantie: 1 an Surface au sol: Petit
Pression de sortie d'oxygène: 0,2-0,4 MPa Plage de pression: 1,6 MPa
Puissance de fonctionnement: 1 kW Température de travail: -196 - 50 ℃
Consommation: Salon de l'énergie Poids du réservoir vide: 89000 kg
Mettre en évidence:

1-10 bar Pressure VPSA Oxygen Generator

,

1 Year Warranty Oxygen Generation System

,

1.6 MPa Pressure Range Vacuum Pressure Swing Adsorption Oxygen Generator

Customized VPSA Oxygen Gas Generator Full Auto VPSA Oxygen Generation System
The VPSA Oxygen Generator is an efficient gas separation device that uses air as raw material and relies on the strong adsorption capacity of lithium-based or zeolite molecular sieves for nitrogen. It completes adsorption operations under low-pressure environment and achieves deep regeneration of molecular sieves through vacuum pumps, cyclically producing high-purity oxygen. Its modular design supports flexible capacity expansion with low maintenance cost, making it ideal for large-scale continuous oxygen supply applications.
Product Specifications
Model N2 Flow (Nm3/h) Effect Air Consumption (Nm3/min) at Various Purity Levels
95% 98% 99% 99.9% 99.99%
VPSA-5 5 0.3 0.25 0.27 0.4 0.6
VPSA-10 10 0.55 0.48 0.52 0.73 1.2
VPSA-20 20 1.2 0.98 1.1 1.4 2.4
VPSA-30 30 1.65 1.36 1.52 2.1 3.9
VPSN-50 50 2.85 2.4 2.58 4.35 6.6
VPSA-100 100 5.5 4.8 5.2 6.8 13.1
VPSA-150 150 8.25 7.5 7.83 10.2 19
VPSA-200 200 11 9.8 10.9 13.6 25.8
VPSA-300 300 16.5 14.5 15 20.4 39
VPSA-400 400 22 19.2 20.5 27.2 49.5
VPSA-500 500 27.5 24 25.5 34 63
VPSA-600 600 33 28.8 30.2 40.8 78
VPSA-800 800 45 36.4 40.1 55 103
VPSA-1000 1000 55 48 50.7 68 -
VPSA-1500 1500 85 70 74.8 103 -
VPSA-2000 2000 110 93 103 - -
Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use 0 Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use 1 Customized VPSA Oxygen Generator with 1-10 bar Pressure Range and 1 Year Warranty for Industrial Use 2
Cyclic Mechanism of Adsorption and Desorption
The VPSA Oxygen Generator (Vacuum Pressure Swing Adsorption Oxygen Generator) realizes air separation based on the selective adsorption characteristics of molecular sieves, with a complete working cycle typically ranging from 60 to 90 seconds. In the adsorption phase, the blower delivers filtered compressed air (after removing oil, water, and dust through pre-treatment equipment) into the adsorption tower at a pressure of 0.1-0.3MPa (near atmospheric pressure). The tower is filled with lithium-based or zeolite molecular sieves, which have a 4-5 times stronger adsorption capacity for nitrogen than oxygen.
As air flows through the molecular sieve bed (with a height of 1.5-2.5 meters), nitrogen molecules are trapped in the sieve's porous structure, while oxygen (accounting for 21% of air) passes through unimpeded. The oxygen is then collected through the top outlet of the tower, and after being stabilized by a buffer tank, it is delivered to the user terminal with a purity of 90%-95%--a range that meets most industrial and medical standards.
Core Technological Advantages
  • Energy Efficient: Consumes only 0.32-0.38kWh/Nm³, 30%-40% more efficient than traditional cryogenic distillation and 15%-20% more efficient than conventional PSA systems
  • Automated Operation: Controlled by PLC with touchscreen interface for easy parameter setting and system monitoring
  • Modular Design: Allows flexible capacity expansion without system modification, saving 30%-50% of reconstruction costs
  • Continuous Supply: Dual-tower parallel design ensures uninterrupted oxygen production
  • Low Maintenance: Robust construction with minimal moving parts reduces upkeep requirements
We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. Our team will be pleased to assist you.
