5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use

5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use
5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use

Image Grand :  5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: GNEE
Certification: SGS
Conditions de paiement et expédition:
Quantité de commande min: ≥ 1 sept
Détails d'emballage: emballage en bois
Délai de livraison: Temps de transit: EST. 17-24 jours
Conditions de paiement: L / C, D / A, D / P, T / T, Western Union, Moneygram
Contact

5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use

description de
Température de fonctionnement: 5-45 ° C Rapport de test de machines: Fourni
Pression de sortie d'oxygène: 0,2-0,4 MPa Isolation: poudre à vide
Sortie d'azote: 170Nm3/hr Pureté de l'oxygène: 90-95%
Couleur: Brillant ou personnalisé Durée de vie: 10 ans
Puissance de fonctionnement: 1 kW Point de rosée: -40 ° C
Mettre en évidence:

5-45°C Operating Temperature VPSA Oxygen Generator

,

10 Years Life Span Oxygen Generation Equipment

,

1 KW Operate Power VPSA Oxygen Plant

99.5% High Purity VPSA Oxygen Generator Device
Medical and Industrial Gas Generation Equipment
Vacuum Pressure Swing Adsorption (VPSA) is an advanced technology for separating oxygen from air. It utilizes the difference in adsorption capacity of various air components on adsorbents. The adsorbent selectively adsorbs gases when pressure is increased and desorbs to regenerate when pressure is reduced to a vacuum state.
VPSA oxygen generation equipment operates using electricity as the power source and air as the raw material. It leverages the property of molecular sieves to increase the adsorption capacity of nitrogen under positive pressure and decrease it under negative pressure. A cyclic process of positive-pressure adsorption and vacuum desorption is achieved by alternating the operation of the 2 adsorption vessels, enabling the separation of oxygen and nitrogen from the air and the continuous production of industrial oxygen.
The VPSA oxygen generation process is a physical adsorption process, involving no chemical reactions or environmental pollution, making it an ideal oxygen supply method. Compared to traditional cryogenic oxygen production, the VPSA process offers significant advantages, including simpler composition and process, easier operation, more rapid startup, safe and reliable normal-temperature and low-pressure operation, lower energy consumption, and significantly lower oxygen production costs.
Product Parameters
Gas production m³/h Oxygen concentration% Oxygen pressure Mpa Power 220V Power/kw Host weight/kg Dimensions/mm Air loss factor Number of bottles per day 40L/120-150kg
393±30.4±0.10.26001500900150013.512-15
593±30.4±0.10.29001600900150013.520-24
1093±30.4±0.10.212001600900190013.540-48
2093±30.4±0.10.2150019001000218013.580-96
3093±30.4±0.10.2200020001100218013.5120-154
4093±30.4±0.10.2250026001200230013.5160-192
5093±30.4±0.10.52800180015002400+80013.5200-240
6093±30.4±0.10.53200180015002600+80013.5240-184
7093±30.4±0.10.53500180016002800+80013.5280-236
8093±30.4±0.10.54000180016002900+100013.5320-394
9093±30.4±0.10.54800200016002800+100013.5360-432
10093±30.4±0.10.55800220016002900+100013.5400-480
12093±30.4±0.10.56500240016003100+100013.5480-576

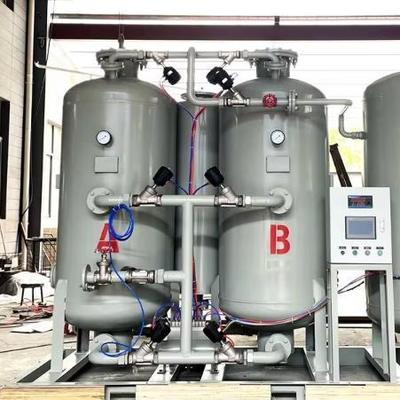

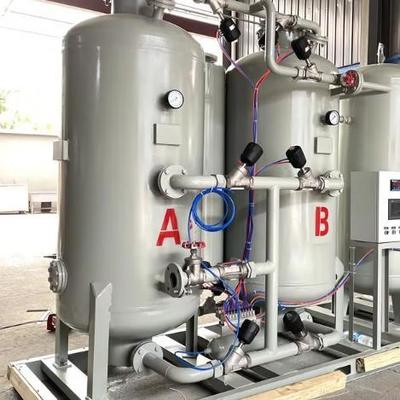

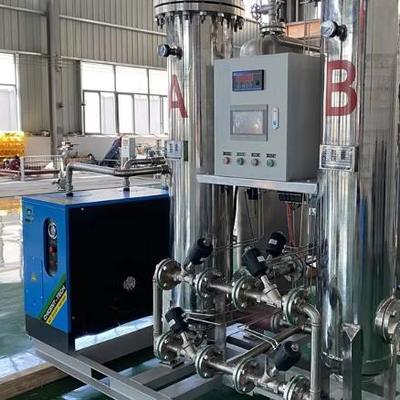

5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 0 5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 1 5-45°C Operating Temperature VPSA Oxygen Generator with 10 Years Life Span and 1 KW Operate Power for Industrial Use 2
Salient Features of VPSA Oxygen Generator Plant
  1. Low Power Consumption
    The equipment parameters are precise, with no overload or performance waste. High-energy oxygen-producing molecular sieves are adopted, featuring low adsorption resistance. The adsorption tower and process pipeline are well designed.
  2. Low Noise
    The pipe and valve diameters are large, but the gas flow rate is low. A design that combines sound insulation and sound absorption.
  3. Long Service Life
    Components are selected from first-line brands at home and abroad, ensuring reliable quality. The top seal of the tower is tight and reliable. Regular follow-up visits and emphasis on after-sales maintenance.
  4. Intelligent Operation
    One-click start and stop, unattended operation. The alarm and emergency stop procedures respond promptly. The self-control logic design is strict and reasonable.

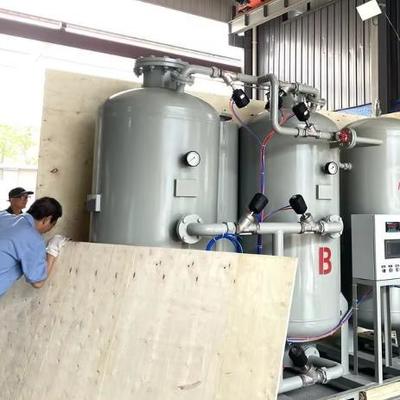

Packaging Details
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
